本頁說明如何將現有專案從 flutter_driver 遷移至 integration_test 套件, 以便執行整合測試(integration tests)。

使用 integration_test 的測試會採用與 元件測試 相同的方法。

若想了解 integration_test 套件的簡介, 請參考 整合測試 指南。

入門範例專案

#

本指南中的專案是一個小型的桌面應用程式範例,具備以下功能:

  • 左側有一個植物清單,使用者可以捲動、點擊並選取。
  • 右側為詳細資料螢幕,會顯示植物名稱與品種。
  • 應用程式啟動時,若尚未選取植物,會顯示提示使用者選擇植物的文字。
  • 植物清單會從位於 /assets 資料夾的本地 JSON 檔案載入。

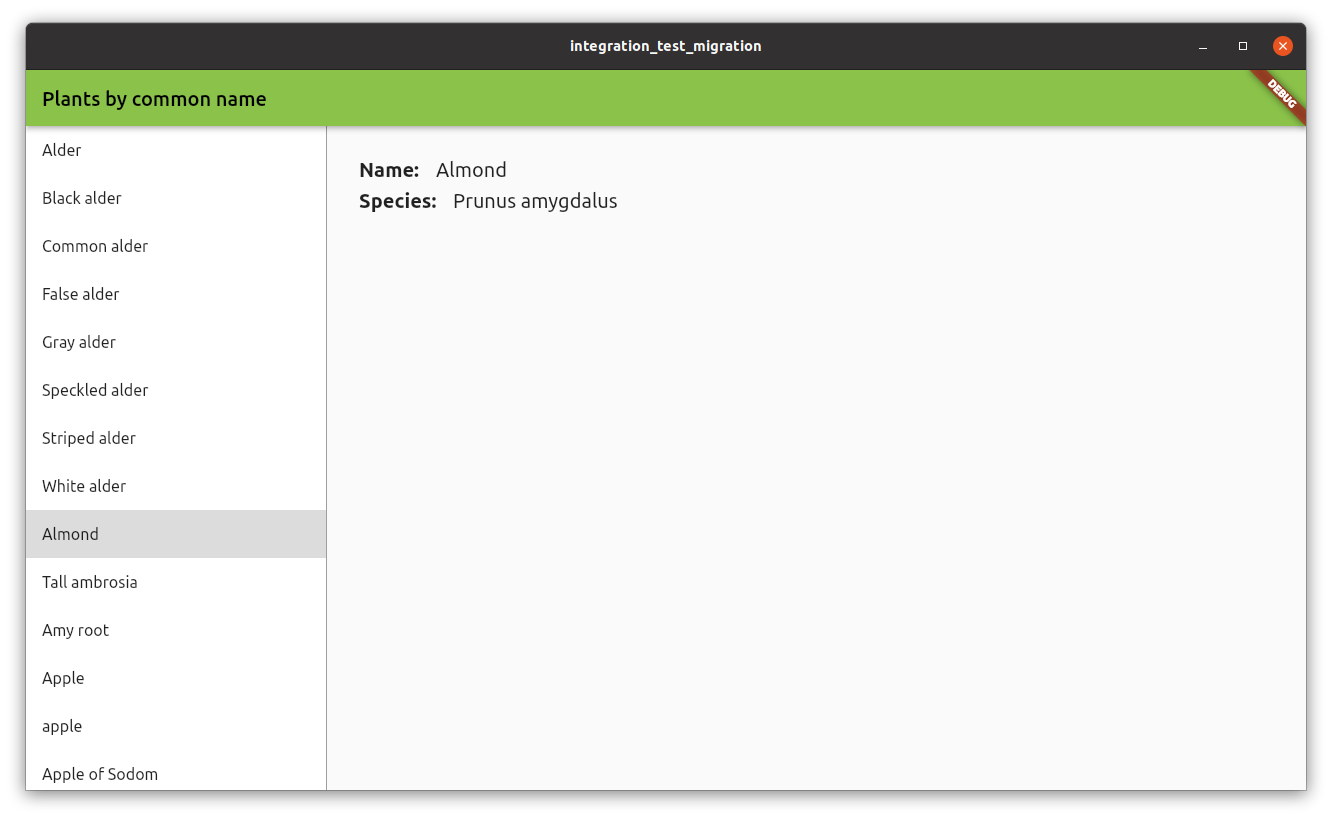

Starter project screenshot

完整的程式碼範例可在 Example Project 資料夾找到。

現有測試

#

此專案包含三個 flutter_driver 測試, 進行以下檢查:

  • 驗證應用程式的初始狀態。
  • 選取植物清單中的第一個項目。
  • 捲動並選取植物清單中的最後一個項目。

這些測試存放於 test_driver 資料夾內的 main_test.dart 檔案中。

在此資料夾中還有一個名為 main.dart 的檔案, 其中包含對 enableFlutterDriverExtension() 方法的呼叫。 使用 integration_test 時,這個檔案將不再需要。

設定

#

若要開始使用 integration_test 套件, 請將 integration_test 加入你的 pubspec.yaml 檔案(如果尚未加入):

yaml
dev_dependencies:
  integration_test:
    sdk: flutter

接下來,在你的專案中建立一個新的目錄 integration_test/,並在該處建立你的測試檔案,格式為:<name>_test.dart

測試遷移

#

本節包含了如何將現有 flutter_driver 測試遷移為 integration_test 測試的不同範例。

範例:驗證元件(Widget)是否顯示

#

當應用程式啟動時,右側的螢幕會顯示一段文字,提示使用者從清單中選擇一個植物。

此測試會驗證該文字是否有被顯示。

flutter_driver

flutter_driver 中,測試使用了 waitFor, 這會等待 finder 能夠定位到該元件(Widget)。 如果找不到該元件,測試就會失敗。

dart
test(
  'do not select any item, verify please select text is displayed',
  () async {
    // Wait for 'please select' text is displayed
    await driver.waitFor(find.text('Please select a plant from the list.'));
  },
);

integration_test

integration_test 中,你需要執行兩個步驟:

  1. 首先,使用 tester.pumpWidget 方法載入主要的應用程式元件(Widget)。

  2. 接著,使用 expect 搭配比對器 findsOneWidget,以驗證該元件(Widget)是否已顯示。

dart
testWidgets(
  'do not select any item, verify please select text is displayed',
  (tester) async {
    // load the PlantsApp widget
    await tester.pumpWidget(const PlantsApp());

    // wait for data to load
    await tester.pumpAndSettle();

    // Find widget with 'please select'
    final finder = find.text('Please select a plant from the list.');

    // Check if widget is displayed
    expect(finder, findsOneWidget);
  },
);

範例:點擊動作

#

此測試會在清單中的第一個項目上執行點擊動作, 該項目是一個ListTile,其文字為 "Alder"。

點擊後,測試會等待詳細資訊出現。 在此情境下,測試會等待具有文字 "Alnus" 的元件(Widget)被顯示出來。

此外,測試也會驗證 "Please select a plant from the list." 這段文字不再顯示。

flutter_driver

flutter_driver中,使用driver.tap方法,透過 finder 在元件(Widget)上執行點擊。

若要驗證某個元件(Widget)未被顯示, 請使用waitForAbsent方法。

dart
test('tap on the first item (Alder), verify selected', () async {
  // find the item by text
  final item = find.text('Alder');

  // Wait for the list item to appear.
  await driver.waitFor(item);

  // Emulate a tap on the tile item.
  await driver.tap(item);

  // Wait for species name to be displayed
  await driver.waitFor(find.text('Alnus'));

  // 'please select' text should not be displayed
  await driver.waitForAbsent(
    find.text('Please select a plant from the list.'),
  );
});

integration_test

integration_test 中,請使用 tester.tap 來執行點擊(tap)操作。

點擊操作之後,必須呼叫 tester.pumpAndSettle,以等待該操作完成,並確保所有 UI 變化都已發生。

若要驗證某個元件(Widget)未顯示,請使用相同的 expect 函式,搭配 findsNothing matcher。

dart
testWidgets('tap on the first item (Alder), verify selected', (tester) async {
  await tester.pumpWidget(const PlantsApp());

  // wait for data to load
  await tester.pumpAndSettle();

  // find the item by text
  final item = find.text('Alder');

  // assert item is found
  expect(item, findsOneWidget);

  // Emulate a tap on the tile item.
  await tester.tap(item);
  await tester.pumpAndSettle();

  // Species name should be displayed
  expect(find.text('Alnus'), findsOneWidget);

  // 'please select' text should not be displayed
  expect(find.text('Please select a plant from the list.'), findsNothing);
});

範例:滾動

#

這個測試與前一個測試類似, 但它改為向下滾動並點擊最後一個項目。

flutter_driver

若要使用flutter_driver向下滾動, 請使用driver.scroll方法。

你必須提供要執行滾動動作的元件(Widget), 以及滾動所需的持續時間(duration)。

你也需要提供這次滾動動作的總位移(offset)。

dart
test('scroll, tap on the last item (Zedoary), verify selected', () async {
  // find the list of plants, by Key
  final listFinder = find.byValueKey('listOfPlants');

  // Scroll to the last position of the list
  // a -100,000 pixels is enough to reach the bottom of the list
  await driver.scroll(
    listFinder,
    0,
    -100000,
    const Duration(milliseconds: 500),
  );

  // find the item by text
  final item = find.text('Zedoary');

  // Wait for the list item to appear.
  await driver.waitFor(item);

  // Emulate a tap on the tile item.
  await driver.tap(item);

  // Wait for species name to be displayed
  await driver.waitFor(find.text('Curcuma zedoaria'));

  // 'please select' text should not be displayed
  await driver.waitForAbsent(
    find.text('Please select a plant from the list.'),
  );
});

integration_test

有了 integration_test,可以使用 tester.scrollUntilVisible 方法。

現在不需要再提供要滾動的元件(Widget), 而是直接提供你要搜尋的項目。 在這個例子中,你正在搜尋 文字為 "Zedoary" 的項目, 它是列表中的最後一個項目。

此方法會搜尋任何 Scrollable 元件(Widget), 並使用指定的位移量來執行滾動動作。 這個動作會重複執行,直到該項目變為可見。

dart
testWidgets('scroll, tap on the last item (Zedoary), verify selected', (
  tester,
) async {
  await tester.pumpWidget(const PlantsApp());

  // wait for data to load
  await tester.pumpAndSettle();

  // find the item by text
  final item = find.text('Zedoary');

  // finds Scrollable widget and scrolls until item is visible
  // a 100,000 pixels is enough to reach the bottom of the list
  await tester.scrollUntilVisible(item, 100000);

  // assert item is found
  expect(item, findsOneWidget);

  // Emulate a tap on the tile item.
  await tester.tap(item);
  await tester.pumpAndSettle();

  // Wait for species name to be displayed
  expect(find.text('Curcuma zedoaria'), findsOneWidget);

  // 'please select' text should not be displayed
  expect(find.text('Please select a plant from the list.'), findsNothing);
});
